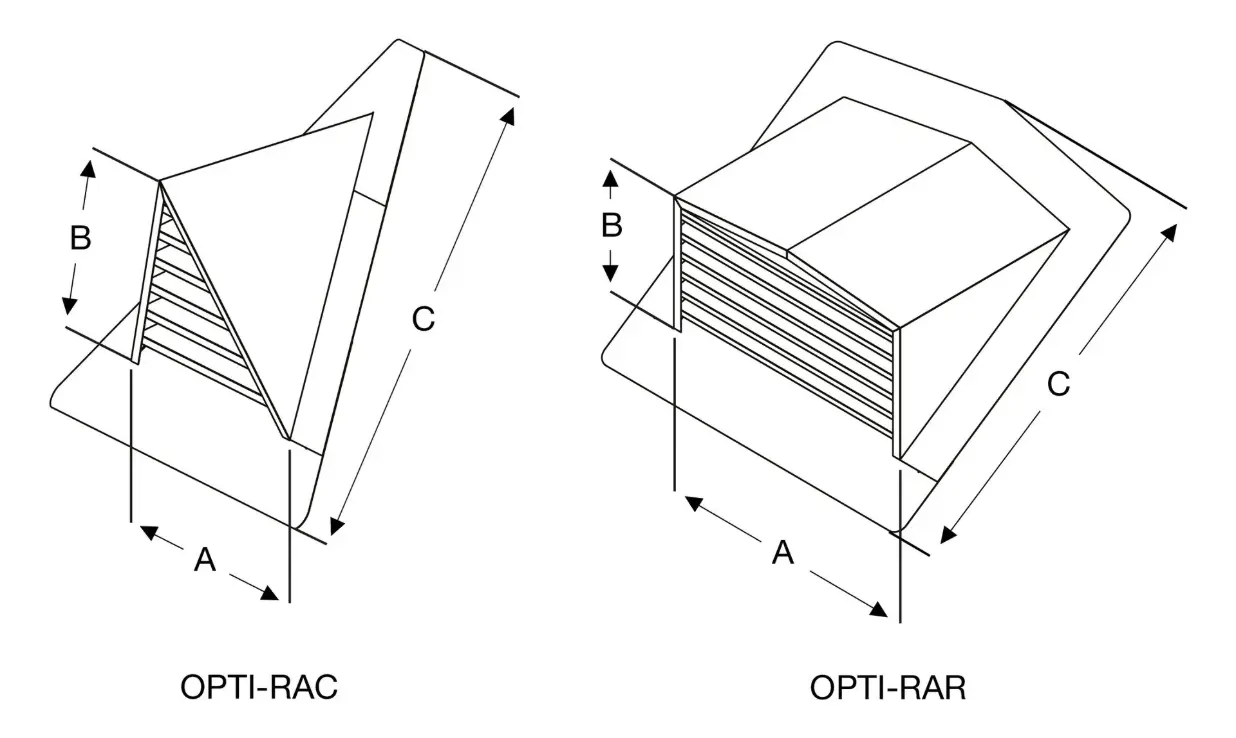

OPTI-RAC / OPTI-RAR
Cathedral Intake Vent /
Rectangular Intake Vent
The OPTI-RAC triangular-shaped vent or OPTI-RAR rectangular-shaped vent provides the necessary air intake when there is no soffit which allows for proper ventilation of the roof when combined with a standard roof attic vent. These additional air intakes are specially designed to deny water or snow infiltration. Because the part of the unit starts directly from the roof surface, it is always important to ensure that the vent is well cleared. These models are useful when the air intake at the soffit is:
Blocked by insulation. – The exterior wall touches on roof bypass. – At the junction of a attic and the attic.
Do you want to buy this product?
Ventilation is required by the Canadian Building Code. So a Good ventilation means keeping the attic space near the outside temperature to avoid excessive contrasts. With the help of soffits, for example In summer, the chimney effect created by the Optimum ventilator eliminates excess heat from the attic and thus helps maintain the integrity of the asphalt shingles. In winter, you will get a drier attic. So no matter what the season, Optimum Ventilators will help to optimize the comfort of your home!
Characteristic
The vent is manufactured from galvanized steel followed by a specialized baked paint finish.
Options
Standard manufacturing for slopes of 4/12 and/or custom-made as special order. This vent is designed per the customer's specifications. The angle of the roof and the colour are variable. Make sure the vent is always clear and free of debris ensuring uninterrupted air flow to the roof. *Please indicate the roof slope and the desired color. Lead times may vary.
Colours
Standard colours available: brown, grey, black and charcoal. Other colours available on special order (additional fee).
CSA Certified
The National Building Code requires adequate ventilation of the roof as per the minimum standard of Section 9.19.1 or according to the ACNOR CAN3-A93-M82.
Optimum vents have a limited lifetime warranty against any manufacturing defects that may affect the unit. We can offer this peace of mind to all our customers because all our products are CSA approved. We apply also those same criterias of quality on all custom models. This means that during the time when the owner of the house who installed or had installed the Optimum vent remains at the address of the installation, Ventilation Optimum replace it free for the first five years and thereafter, in proportion to the years of use, against any defect. In such a case, the cost of transportation and installation will be at the customer charge as well as any home repairs. The warranty applies in all cases where the Optimum vent has been installed according to our recommendations and has been free from any abuse, misuse or other circumstances beyond the control of Ventilation Optimum including salty air.
Warranty regarding painting: The Optimum Roof Ventilator is made of 24 and 26 gauge galvanized steel and is coated with a powder or liquid baked polyester based paint. Optimum Ventilation is proud to offer you a 5 year warranty against corrosion. During this period, Ventilation Optimum will replace the product at the counter upon presentation of the original proof of purchase.
Conditions : The responsibility of Ventilation Optimum is limited only to the replacement of parts in the workshop. All expenses related to time, travel and home repairs are not covered by this warranty. Corrosion that does not result from a defect in material or workmanship is not covered by this warranty. Circumstances beyond the control of Ventilation Optimum such as: corrosion caused by industrial fallout, acid rain, accidents, damage, negligence, modification of the product as well as that resulting from improper installation damaging steel, paint scratched by handling, installation or negligence, by an acid environment such as swine farms etc … are excluded from this warranty.
This warranty also excludes damage caused by:
– Infiltration of water due to an improper installation that does not comply with the recommendations and instructions of the manufacturer;
– The infiltration of water and / or condensation due to a building deficiency at the level of the national building code;
– Failure of roof drainage;
– The accumulation of snow covering the vent;
– Any domestic paint applications or inappropriate cleaning solutions;
– Bad weather and natural disasters;
– Transportation, handling or storage.
Tightness of the roof or parts installed by the contractor are not guaranteed as they are out of the control of the manufacturer. It is the roofer’s responsibility to ensure that the base is properly waterproofed using the proper roofing products. The Association of Master Roofers (AMCQ) recommends using the following technique: Metal flanges: The metal flanges of all projections must be coated with a primer embedded in plastic roofing cement, covered with a fold of cotton saturated with asphalt or canvas, followed by a fold of 15-pound felt and another fold of cotton saturated with asphalt or canvas embedded in a bitumen. In addition, having no precise notion of the composition of the building such as the tightness of the vapor barrier, the insulation or the exact amount of air inlets; these elements do not allow us to give a guarantee on the final result. Proof of purchase showing the date, your name and the shipping address will be essential in order to make any warranty claim.
