OPTI-PM
Wall Air Intake
The wall shutter provides a discreet and aesthetic air intake. It is available to meet various needs. The wall shutter is generally used to help ventilate agricultural and industrial buildings as well as home facilities.
Do you want to buy this product?
The wall shutter can be used as air intake as well as air exhaust.
Characteristic
The vent is manufactured from galvanized steel followed by a specialized baked paint finish.
Custom Model
These products are available by special order only. We can manufacture any other size on request.
Colours
Standard colours available: brown, grey, black, white. Other colours available on special order (additional fee).
In compliance with CSA
The National Building Code requires adequate ventilation of the roof as per the minimum standard of Section 9.19.1 or according to the ACNOR CAN3-A93-M82.
Optimum vents have a limited lifetime warranty against any manufacturing defects that may affect the unit. We can offer this peace of mind to all our customers because all our products are CSA approved. We apply also those same criterias of quality on all custom models. This means that during the time when the owner of the house who installed or had installed the Optimum vent remains at the address of the installation, Ventilation Optimum replace it free for the first five years and thereafter, in proportion to the years of use, against any defect. In such a case, the cost of transportation and installation will be at the customer charge as well as any home repairs. The warranty applies in all cases where the Optimum vent has been installed according to our recommendations and has been free from any abuse, misuse or other circumstances beyond the control of Ventilation Optimum including salty air.
Warranty regarding painting: The Optimum Roof Ventilator is made of 24 and 26 gauge galvanized steel and is coated with a powder or liquid baked polyester based paint. Optimum Ventilation is proud to offer you a 5 year warranty against corrosion. During this period, Ventilation Optimum will replace the product at the counter upon presentation of the original proof of purchase.
Conditions : The responsibility of Ventilation Optimum is limited only to the replacement of parts in the workshop. All expenses related to time, travel and home repairs are not covered by this warranty. Corrosion that does not result from a defect in material or workmanship is not covered by this warranty. Circumstances beyond the control of Ventilation Optimum such as: corrosion caused by industrial fallout, acid rain, accidents, damage, negligence, modification of the product as well as that resulting from improper installation damaging steel, paint scratched by handling, installation or negligence, by an acid environment such as swine farms etc … are excluded from this warranty.
This warranty also excludes damage caused by:
– Infiltration of water due to an improper installation that does not comply with the recommendations and instructions of the manufacturer;
– The infiltration of water and / or condensation due to a building deficiency at the level of the national building code;
– Failure of roof drainage;
– The accumulation of snow covering the vent;
– Any domestic paint applications or inappropriate cleaning solutions;
– Bad weather and natural disasters;
– Transportation, handling or storage.
Tightness of the roof or parts installed by the contractor are not guaranteed as they are out of the control of the manufacturer. It is the roofer’s responsibility to ensure that the base is properly waterproofed using the proper roofing products. The Association of Master Roofers (AMCQ) recommends using the following technique: Metal flanges: The metal flanges of all projections must be coated with a primer embedded in plastic roofing cement, covered with a fold of cotton saturated with asphalt or canvas, followed by a fold of 15-pound felt and another fold of cotton saturated with asphalt or canvas embedded in a bitumen. In addition, having no precise notion of the composition of the building such as the tightness of the vapor barrier, the insulation or the exact amount of air inlets; these elements do not allow us to give a guarantee on the final result. Proof of purchase showing the date, your name and the shipping address will be essential in order to make any warranty claim.
Wall Air Intake Installation Adapter

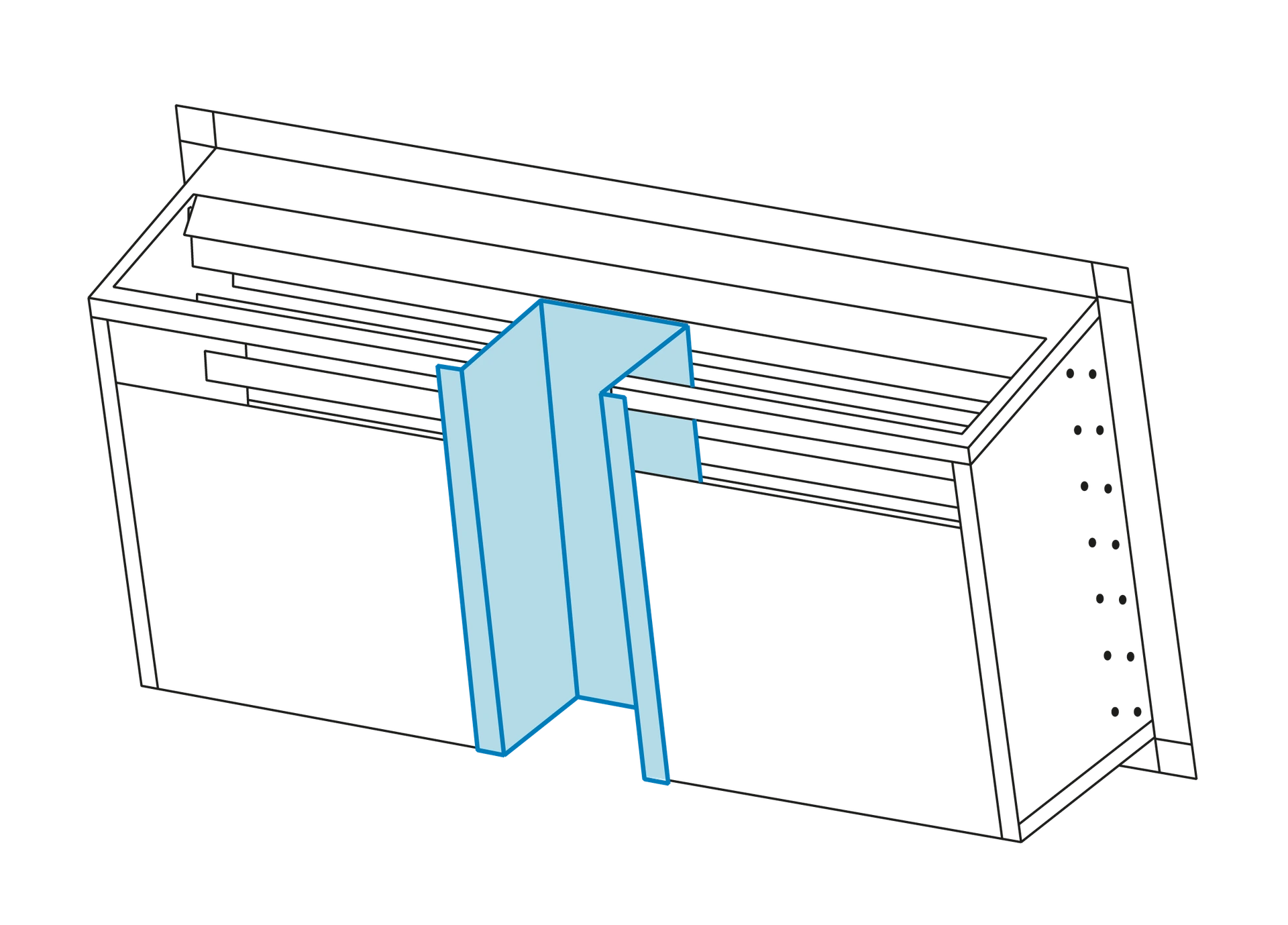

This adapter has been designed to facilitate the installation of wall air intakes when a roof truss or other structural element is located directly behind the intended opening (see illustration).
Thanks to this component, it is no longer necessary to position the intake exclusively between two structural elements. It allows for greater design freedom by permitting the installation of the intake in the desired location, while minimizing the impact on ventilation capacity.
The portion removed from the air intake unit corresponds solely to the retention pan. This modification results in a negligible reduction in air extraction capacity, thus maintaining excellent ventilation performance.
Adapter Installation
- Determine the location where the structural element interferes with the wall air intake unit;
- Cut open the unit according to the dimensions of the adapter so that it can be inserted;
- Position the adapter and ensure that all joints are sealed to maintain perfect waterproofing;
- Attach the adapter to the unit using the appropriate screws.
Important Notes:
- These recommendations apply to units where the air evacuation opening is located in the upper part.
- For models with the opening located at the rear, or which offer both configurations (upper and rear), an assessment of the installation is recommended to ensure that ventilation performance is maintained.
- The adapter is offered in standard width or can be custom-made to meet the specific requirements of each project.
